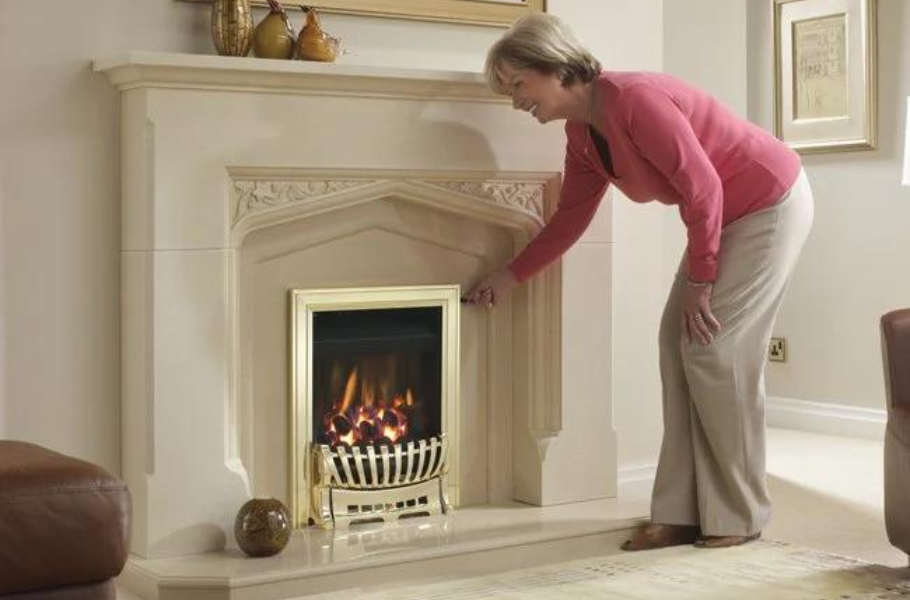

How Does a Gas Fire Slide Control Work?

Gas fireplaces have become an increasingly popular fixture in homes over the past few decades, and for good reason. They provide a convenient and comfortable way to add warmth and ambience to a room without dealing with messy wood or soot. Just flipping a switch or adjusting a dial gives you instant control over the flames and heat output.

Gas fire slide control - the basics

Slide control is one of the key components that allows easy control over a gas fireplace. This mechanism will enable you to seamlessly raise or lower the flame height and heat simply by sliding a lever or knob back and forth. But have you ever wondered exactly how these slide controls work to adjust your gas fireplace’s flames? In this post, we’ll explore the inner workings of these controls and break down how adjusting that sliding lever impacts the fire in your fireplace.

We'll focus on vented gas fireplaces here rather than ventless models. Vented fireplaces are connected to a chimney or other external ventilation source, which is essential for proper exhaust of combustion by-products. Ventless models operate differently, so we'll concentrate on vented for simplicity.

By the end, you'll better understand how the slide control mechanism functions, proper installation and maintenance, and some safety tips for operating your gas fireplace. Let's get started!

Anatomy of a gas fire slide control

First, let's talk about gas fire slide control and how the components are combined.

In simple terms, a slide control consists of a linear actuated gas valve that directly controls the gas flow to the fireplace burner. This gas valve has an opening through which the gas must pass, and the size of this opening determines how much gas can travel through at once, which in turn determines the flame height.

The valve is connected to a lever or slide mechanism that allows manual gas flow adjustment. You physically open or close the gas valve by sliding this lever up or down (or to the left or right in some models). Most slide controls have a range of about 3"-5" of total travel from completely closed to fully open.

Within the valve itself, there are a few main components:

Gas inlet: This is where the main gas line connects to the valve to deliver gas into the system. A stub usually comes out attached to a flex gas line.
Regulator: The regulator section controls the input pressure of gas entering the valve to ensure it is within the proper range. This ensures gas pressure stays consistent.
Manual actuator: This section is physically controlled by the sliding lever and what actually opens and closes the valve. A liner actuator gradually opens or closes the orifice inside based on the lever position.
Outlet: This is the outlet where gas exits the valve to the manifold/burners.

By sliding the lever, you control the actuator section that widens or narrows the opening within the valve that the gas must pass through on its way to the fireplace. More opening = more gas flow.

How adjusting the slide impacts the gas flow

Now that you know the essential components, we can see how adjusting the slide lever impacts gas flow through the valve.

As covered above, moving the slide lever down (or to the far right) will open the gas valve to its maximum capacity. This allows gas to flow freely through the valve to the burners, resulting in the tallest flame height and maximum heat output.

Conversely, sliding the lever back up (or to the left) will close off the valve fully or leave a tiny opening for the pilot flame. This severely restricts gas flow and cuts the fire down to just a pilot light or shuts it off entirely.

Between these extremes is a range of intermediate flame heights and heat outputs. As you incrementally slide the lever, the actuator steadily increases the opening size within the valve, allowing more gas to pass through. The further you slide, the wider the valve opens.

Most gas fireplace valves operate linearly, meaning the valve opening increases linearly as you move the lever across its range. Halfway along, for example, may correspond to about 50% gas flow capacity. This lets you fine-tune flame height based on your needs and room conditions.

Technically, sliding the lever means pulling on the actuator shaft to retract or extend it. When retracted, the shaft keeps an internal orifice constricted. As it extends, it allows that orifice to open up for more gas flow. The actuator motion is smooth and incremental, giving you precise control over flame height.

Some key takeaways:

Sliding the lever down or right = increasing gas flow
Sliding lever up or left = decreasing gas flow
More gas = bigger flames and more heat
The range allows incremental flame adjustment

Installation and maintenance

Proper installation ensures your gas fire slide control functions safely and effectively. Here are some critical steps to take:

Follow manufacturer instructions strictly. Don’t take shortcuts.
A qualified technician must install the fireplace and valve.
Make sure gas pressure is tested and within specifications.
Perform leak checks on all connections. Seal any leaks.
Test operation of the slide control. Ensure proper flame adjustment.

Ongoing maintenance is vital for keeping your slide control in good working order:

Inspect tubing and connections annually for any cracks or leaks.
Clean the pilot assembly periodically following the user manual.
Lubricate slide control components if needed per manufacturer guidelines.
Ensure flames are burning cleanly without sputtering or irregularity.
Replace batteries in igniters and leak detectors as required.
Annual service performed by a Gas Safe engineer. This is necessary to maintain the fire’s warranty.

By following the installation guidelines and maintaining the system annually, you can feel confident your fireplace's slide control will function safely for years.

Warning signs of potential problems

Keep an eye out for any of the following issues, which may indicate a problem with the slide control:

Difficulty sliding the control smoothly
The fire doesn’t ignite
Flames burn unusually high or low
A gas smell even when turned off
Evidence of leaks around valves or lines
Black residue on glass or around vents

If any of these warning signs crop up, don't continue using your fireplace. Consult with a professional to inspect the slide control and identify any issues. Repairs or replacements may be needed to get your unit functioning correctly again.

Don't take chances when it comes to gas safety. Investigating potential gas fire slide control issues right away can prevent more serious problems.

Safety tips for operating your gas fireplace

While gas fireplaces are pretty safe when operated correctly, there are a few precautions to take for optimal safety:

Carefully follow manufacturer guidelines for proper flame height. Excessive flames can be dangerous.
Turn the fireplace completely off after use. Leaving just the pilot on can allow gas to leak over time.
Ensure your unit has proper ventilation to the outside. Lack of oxygen can lead to improper combustion.
Check that your smoke and CO detectors work correctly in the room where the fireplace is located.
Never leave candles burning near an active fireplace, where they could get accidentally knocked over.

By remembering these simple safety tips, you can confidently enjoy the cosy convenience of your gas fireplace for years to come.

By sliding the lever across its range, you are directly controlling the position of an internal gas valve actuator and, subsequently, the gas flow volume to the burners. More gas creates bigger flames and more heat output. Incremental adjustments provide precise control over the fire intensity.

While gas fireplace slide controls are sturdy and reliable, proper installation and regular maintenance are crucial to keeping everything functioning safely. Additionally, following some basic safety precautions will allow you to sit back and enjoy the ambient charm of your fireplace without worry.

If you have any other questions about slide-control fireplaces, don't hesitate to contact our team on 0161 376 4181 or email [email protected]. As always, follow the instructions your manufacturer provides for installing, maintaining, and safely operating your fireplace. Enjoy the cosy flames!
